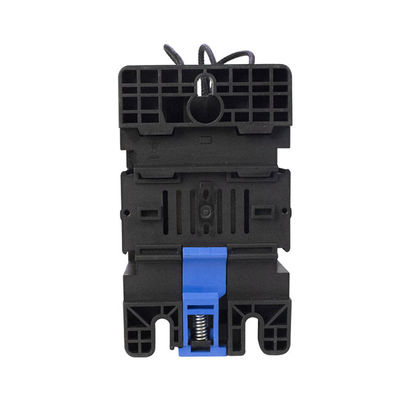

خازن سوئیچینگ کنتور موتور AC 3P 25A ~ 170A IEC60947 EN / IEC60947-4-1
Product Details
| جریان درجه اصلی مدار: | 25-95A ، 170 115 115A | نوع برق: | AC ، AC / DC |
|---|---|---|---|
| ولتاژ درجه بندی مدار اصلی: | 600 ولت ، 220 ولت ، 380 ولت ، 110 ولت ، 24 ولت | تعداد قطب: | 3،4 |
| فاز: | 3،1 عکس | فرکانس: | 50 / 60Hz |
| نام محصول: | کنتاکتور AC CJX2N-D09،3 قطب Ac | دارای رتبه فعلی است: | 95A ، 115-170A |
| استاندارد: | IEC60947 ، EN / IEC60947-4-1 | ||
| برجسته کردن |
سوئیچ کنتاکتور ac,کنتاکتور AC مرکزی |
||
Product Description

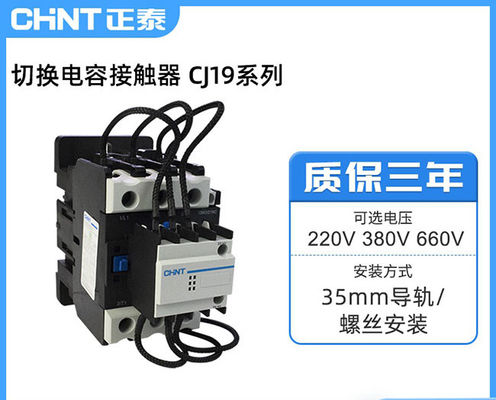

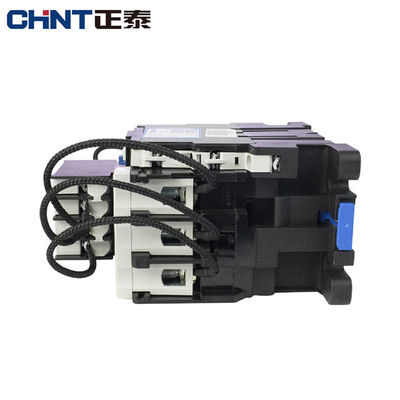

کانکتور تعویض خازن Chint CJ19 3P، 25A ~ 170A AC-3 AC-1 سیم پیچ ولتاژ 24 ولت ، 110 ولت ، 230 ولت ، 380 ولت
| Product Series | CJ19 |
|---|---|
| product type | Capacitor Switching Contactor |
| Product short name | CJ19 Contactor |
| Contactor application area | Power factor correction |
| Control loop type | AC |
| Coil type | AC 50/60 Hz |
| Number of poles | 3P |
| Loop contact type | 3 NO |
| Contactor level code | DPK |
| Auxiliary contact type | 1 NO + 2 NC |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Reactive power | 20 kvar on...220...240 V 50/60 Hz on <55 °C 33.3 kvar on 400...440 V 50/60 Hz on <55 °C 48 kvar on 660...690 V 50/60 Hz on <55 °C |
| protection cap | no |
|---|---|
| Auxiliary contact type | Type mechanical connection 1 NO + 1 NC in accordance with IEC 60947-5-1 Type mirrored to the main contact state 1 NC in accordance with IEC 60947-4-1 |
| Installation method | Rail mounting Base plate installation |
| Tightening torque | Power circuit: 5 Nm through the terminal |
| Rated working voltage [Ue] | Power circuit: <= 690 V AC 50/60 Hz |
| height | 180 mm |
| width | 75 mm |
| depth | 150 mm |
| product weight | 1.3 kg |
| Standards compliant | IEC 60831 GB 14048.4 IEC 60947-4-1 IEC 60070 |
|---|---|
| certified product | CCC |
| IP protection level | IP2x complies with IEC 60529 |
| Protective measures | TH conforms to IEC 60068-2-30 |
| Operating temperature | -5...60 °C |
| Storage ambient temperature | -60...80 °C |
| Working elevation | 3000 m without |
Product Highlights
کانکتور تعویض خازن Chint CJ19 3P، 25A ~ 170A AC-3 AC-1 سیم پیچ ولتاژ 24 ولت ، 110 ولت ، 230 ولت ، 380 ولت main information Product Series CJ19 product type Capacitor Switching Contactor Product short name CJ19 Contactor Contactor application area Power factor correction Control loop type AC Coil ...
