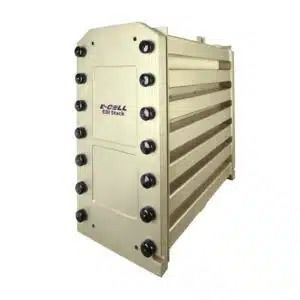

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

جزئیات محصول:

محل منبع:	چین
نام تجاری:	VEOLIA
گواهی:	CE
شماره مدل:	MK-9
سند:	Veolia EDI catalog.pdf

پرداخت:

مقدار حداقل تعداد سفارش:	1 کامپیوتر
قیمت:	قابل مذاکره
جزئیات بسته بندی:	بسته بندی صادرات استاندارد
زمان تحویل:	5- 8 روز کاری
شرایط پرداخت:	T/T ، Western Union
قابلیت ارائه:	60000 واحد در ماه

مخاطب

همه محصولات

جعبه توزیع روشنایی (33)

جعبه توزیع برق (33)

جعبه توزیع ضد آب (48)

جعبه محفظه فایبرگلاس (60)

سوئیچ انتقال خودکار ATS (68)

ماژول های EDI (139)

ماژول های غشا Ultrafiltration (57)

شکن مدار صنعتی (85)

سیستم PV خورشیدی (72)

ایستگاه شارژ EV الکتریکی (21)

رله های زمان بندی مدولار (12)

رله های کنترل اتوماسیون (64)

ترانسفورماتور تنظیم کننده ولتاژ (16)

بادکنک های روشنایی فیلم (136)

نور بادکنک ماه (131)

بادکنک LED سه پایه (115)

برج نور بادی (62)

لوازم جانبی بلوک ترمینال (6)

توضیحات محصول جزئیات

ابعاد پشته MK-9 (سانتی متر به عنوان عرض x ارتفاع x عمق):	30 x 61 x 74	آنیونهای قابل تعویض MK-9 پشته (PPM به عنوان CACO3):	<13
هدایت پشته MK-9 (μs/cm):	<22	pH پشته MK-9:	4-11
دمای پشته MK-9 (درجه سانتیگراد):	4.4-40	سختی پشته MK-9 (PPM به عنوان CACO3):	<1.0
افت فشار:	2.4-3.4 بار (35-50 psi)	فشار:	≤ 6.9 بار (100 psi)
جنجال:	0-5.2 ADC	ولتاژ:	0-400 VDC
بهبودی:	تا 97 ٪	کاربرد:	طراحی جریان بالا و قوی

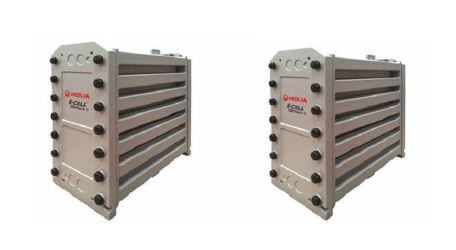

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to 10 m³/h (44 GPM) with resistivity ≥16 MΩ·cm and silica removal to ≤5 ppb. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to 97% and supports hot-water sanitization (up to 85°C) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance

Product Specifications

Attribute	Value
Stack Name	MK-9
Dimensions (cm)	30 x 61 x 74 (W x H x D)
Total exchangeable anions (ppm as CaCO3)	<13
Conductivity (μS/cm)	<22
pH Range	4-11
Temperature Range (°C)	4.4-40
Hardness (ppm as CaCO3)	<1.0
Silica (ppm as SiO2)	<1.0
Typical designed water production (m3/hr)	6.0-10.0
Recovery Rate	Up to 97%
Voltage	0–400 VDC
Typical Applications	Solar Photovoltaics And Green Hydrogen

Product Overview

The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.

Key Features & Benefits

Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring

Technical Parameters

Parameter	Value
Brand	Veolia EDI
Inlet Pressure	6.9 bar (100 psi)
Max Temperature	40°C (104°F)
Pressure Drop	2.4-3.4 bar (35-50 psi)
Flow Rate	8.0m3/h
Shipping Weight	165 kg (364 lbs)

Key Advantages

Continuously produces ultrapure water of mixed bed water quality
No acid and base regeneration required
Guaranteed leak-proof design
Simplified system design with no brine injection or concentrated water circulation

Typical Applications

Power generation (NOx, boiler feed water)
Electronics manufacturing
General industrial applications
Pharmaceutical & Biotech (WFI pre-treatment)
Microelectronics & Semiconductor Manufacturing
Laboratory Ultra-Pure Water Systems

Why Choose Veolia MK-9 EDI?

As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
